Covora
Designed To Ensure Safer Environments
The Covora range is ideal for building services contractors and heating and plumbing installers, who are working to price-sensitive budgets but require simple, high-quality safety compliant radiators.

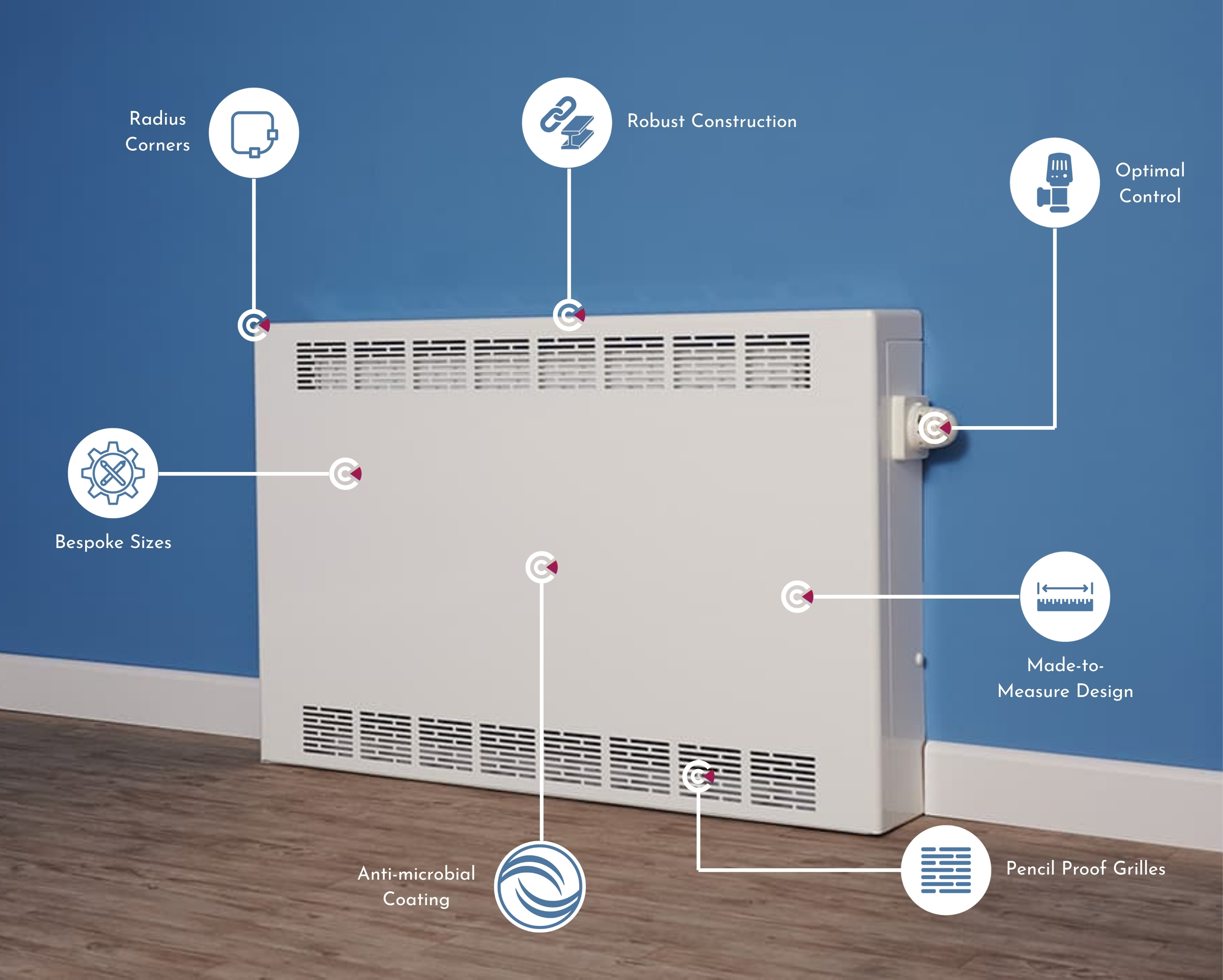

With bullnose corners and half bullnose edges, Covora increases in product strength and the risks of an injury in the event of a fall are significantly reduced.
Covora LST radiator casings now come with BioCote® antimicrobial coating as standard on models finished in White RAL 9003 – to help reduce the risk of infection transmission where the maintenance of hygiene is a priority.
.jpg)
Technical Data
Manufacture
- 1.5mm Zintec steel
- 10mm Radius edges / bullnose corners
- Patented full height front access door with hinge (Pat. No. 2 410 544)
- 5.5mm Punched grille
- Cut-outs programmed into manufacture
Specification
Emitter
- Compact steel panel radiators. EN 442 tested and certified
- Operating pressure 10 bar -(tested to 13 bar/188PSI)
Valve Options Available
- Internal TRV kit 9210-13
- External TRV kit 9231-41
- Remote sensing TRV kit 7463-41
- Alternative valve patterns and sizes are available upon request
Finish
- Polyester powder coated RAL 9003 as standard. Other colour finishes available
- Patented BioCote® anti-microbial agent as standard
Fixings
- Joggle brackets
- Side fixing optional
Sizing & Heat Outputs
Sizing
- Casing lengths from 600mm - 2000mm
- Bespoke options available
Heat Outputs
Heat outputs to BS EN 442 Certification.
Outputs based on a mean radiator water temperature of 70°C and a room temperature of 20°C - Delta T 50°C
To achieve Delta T60 increase T50 figure by 20.5%
To calculate alternative Delta T requirements please refer to page 103 of the LST & Anti-Ligature Radiators & Guards brochure.
To convert BTU to Watts, multiply by 0.293. To convert Watts to BTU divide by 0.293
Optional Extras
- Magnelis for wet rooms
- Different gauges of material available
- Strengthening struts
Standard Delivery
- Standard delivery comprises radiator guard of choice, corresponding Compact emitter (Single Fin, Half Fin, Double Fin and Triple Fin as specified) and the option of a 90degree Herz ½” valve kit (suitable for 15mm copper to copper connection on a two-pipe system)
- Split delivery* option: to reduce the risk of radiator casings becoming damaged or lost on site, Contour offer split deliveries as standard on all LST radiators.
- Radiators and valves are delivered first then once the heating system is installed, tested and commissioned, casings are delivered. This virtually eliminates storage problems and the risk of on-site damage.
*Additional carriage charges will apply for multiple phases
Colour Options Available
White
RAL9003
FAQ
What colour options are available for radiators and guards?
You have the full RAL colour chart to choose from, offering a colour spectrum of 1625 shades.
Contour covers come as standard in Ral 9003 with Biocote protection.
Common colours for Contour LST radiators are:
- White (RAL 9003)
- Oyster White (RAL 1013)
- Tele Grey (RAL 7047)
- Jet Black (RAL 9005)
- Traffic Red (RAL 3020)
- Mint Green (RAL 6029)
- Zinc Yellow (RAL 1018)
- Ultra Marine Blue (RAL 5002)
- Blue Lilac (RAL 4005)
- Azure Blue (RAL 5009)
Benefits Of Covora
Developed for greater efficiency
The Covora radiator range uses the latest round top emitters. The high-quality build of these units and exceptional thermal output make them the ideal choice as LST heat emitters.
Contour’s round top radiators have been designed with smaller water channels which mean they contain less water on average than ‘compact’ style panel emitters. The smaller channels allow more metal to be in actual contact with the water, providing a faster warm-up time. Significantly, they can deliver considerably higher outputs for the same heat energy input compared to panel emitters
