DeepClean - Vertical LST

For applications where available space is at a premium, Contour’s vertical LST radiator is the ideal solution.

With the vertical LST, the streamlined, flat-panel outer casings are suited to a range of different environments, and will maintain high standards for your heating solutions.

Areas such as bathrooms are often small, especially in residential care homes, where they are designed as en suites. Here, narrow LST radiators are required.  Additionally, in school halls and other spaces with narrow wall areas, a vertical LST radiator can be installed to give the space the best possible heating without dominating the walls.

Because wall space is limited, having a radiator that uses the height of the wall rather than the width means that less space is lost, leaving more room for additional appliances or safety features. Vertical LST radiators can be discreetly installed behind doors or mounted on walls, maximising available floor space.

In communal areas, such as in GP surgery waiting rooms, a vertical LST radiator can enhance the usability of the space by opening up more areas for furniture, such as seats, which may have otherwise been restricted.

Contour’s vertical LST incorporates BioCote® anti-microbial protection to ensure safety standards for hygiene are met. The presence of this anti-microbial technology, offers a 99.99% reduction in bacteria levels in under 2 hours.

Download Product Information

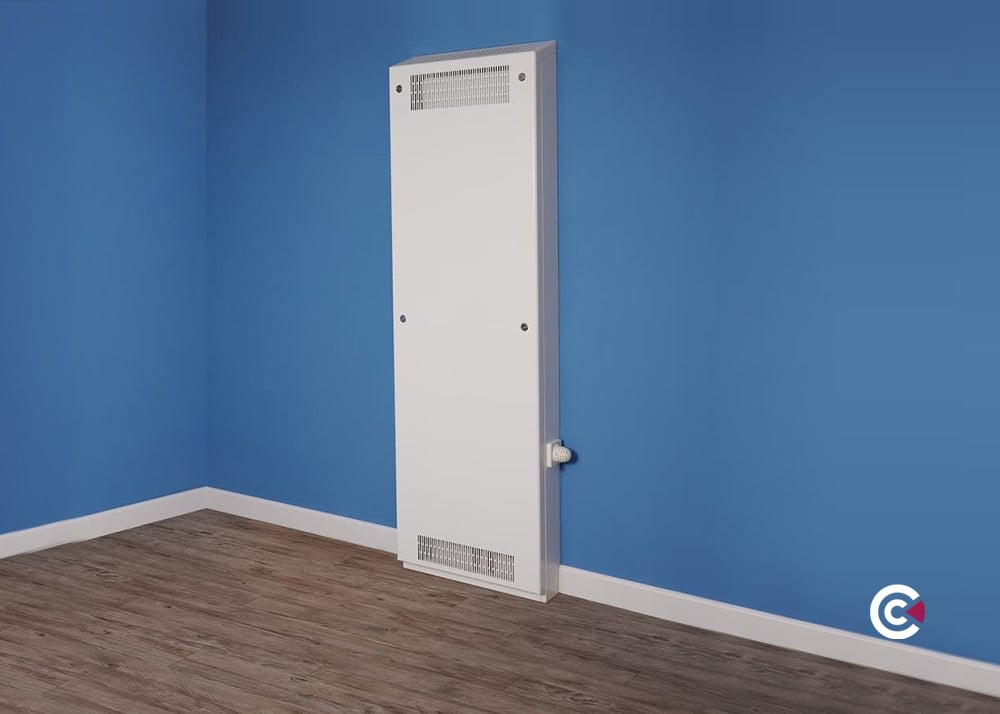

deepclean-vertical-lst-closed

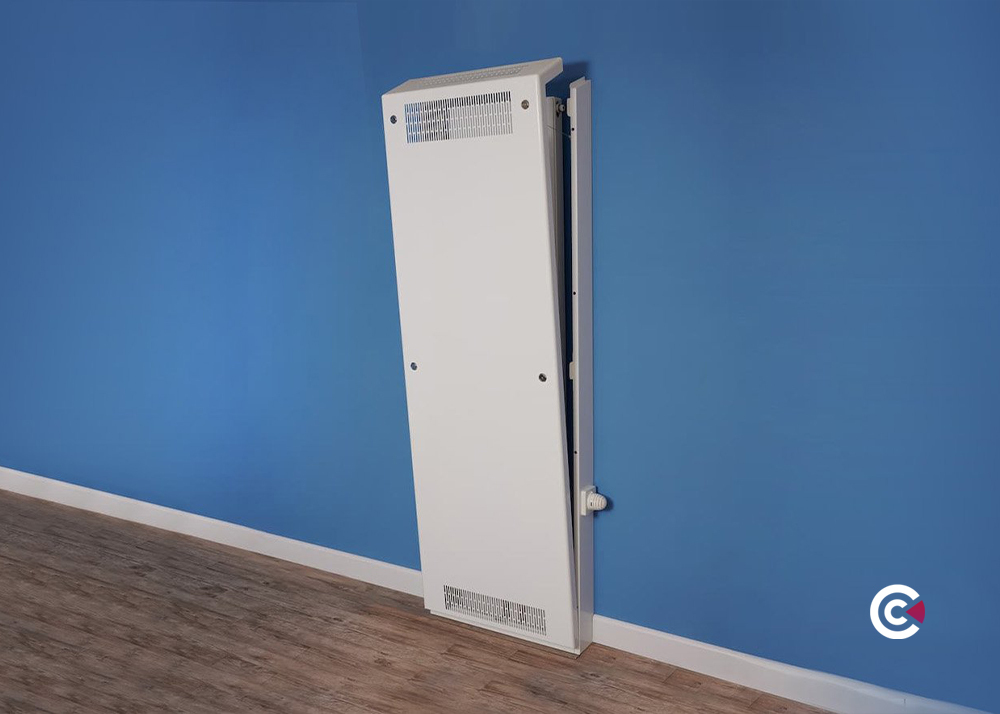

deepclean-vertical-lst-slightly-open
deepclean-vertical-open
deepclean-vertical-lst-closed
deepclean-vertical-lst-slightly-open
deepclean-vertical-open

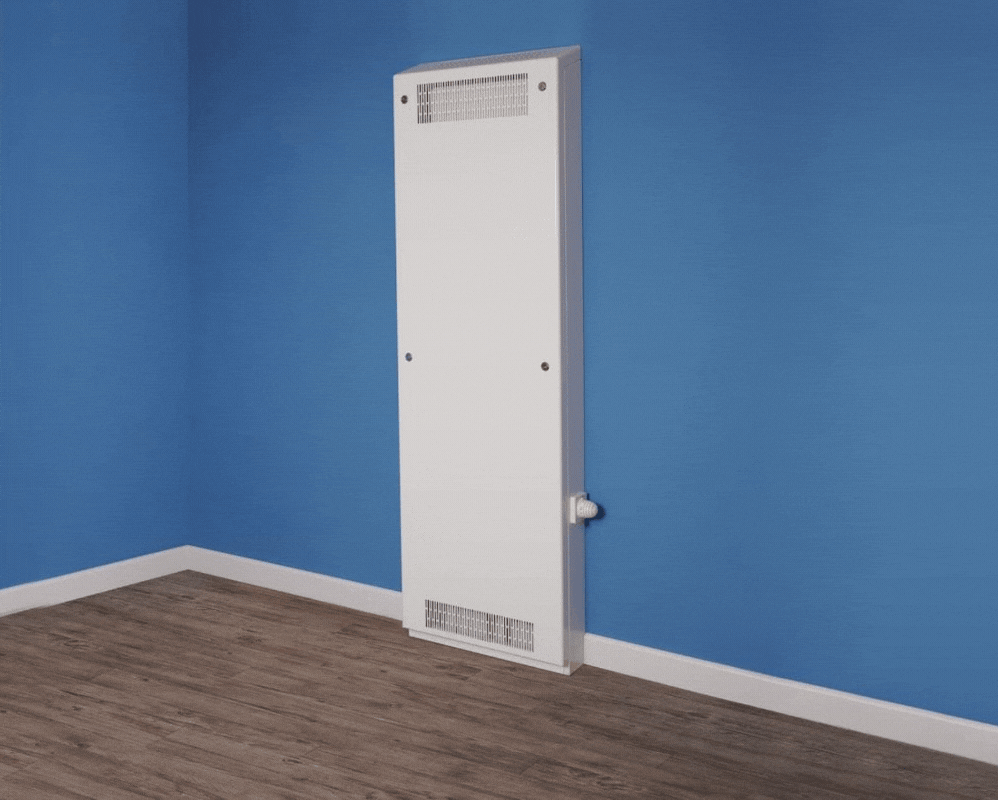

Key Features

Whether it’s the full drop down door or the ‘pencil proof grilles’, the DeepClean LST radiator boasts numerous benefits to the user. Combined with its BioCote® anti-microbial technology, these make for the perfect solution in hygiene control.

Radius corners make it safer if someone falls against the unit.
Powder coated inside and out with Biocote® protection on models finished in RAL 9003 white. Other colours are available.
Full drop down/removable door, allows full access for cleaning to maintain hygiene and heating efficiency in all environments.
Made from 1.5mm Zintec steel - gives strength and robustness. 2mm thick casings available for mental health and other secure facility applications. Casings also available in Magnelis for wet and humid areas.
Pencil Proof grilles, punched directly into the guard, for ease of cleaning.
Casings up to 2m in length are mostly supplied in one piece - no site assembly required (some casings under 2m may require a split dependant on height and depth.)
External TRVs available

Technical Data

Manufacture

  • 1.5mm Zintec steel
  • 10mm radius edges / bullnose corners
  • Patented full height front access door with hinge (Pat. No. 2 410 544)
  • 5.5mm punched grille
  • Cut-outs programmed into manufacture

Specification

Emitter
  • Vertical steel radiators
  • 6 Bar max operating pressure
  • EN442 tested and certified
Valve Options Available
  • Internal TRV kit 9210-13
  • External TRV kit 9330-41
  • Remote sensing TRV kit 7463-41
  • Alternative valve patterns and sizes are available upon request
Finish
  • Polyester powder coated RAL 9003 as standard. Other colour finishes available
  • Patented BioCote® anti-microbial agent as standard
Fixings
  • All fixings internal
  • Pinhex door locks as standard
  • Other secure options available

Sizing & Heat Outputs

Sizing
  • Single casing lengths 400mm - 1100mm
  • Single casing heights 1900mm - 2300mm
  • Bespoke solutions available
Heat Outputs

Heat outputs to BS EN 442 Certification.
Outputs based on a mean radiator water temperature of 70°C and a room temperature of 20°C - Delta T 50°C
To achieve Delta T60 increase T50 figure by 20.5%

To calculate alternative Delta T requirements please refer to page 103 of the LST & Anti-Ligature Radiators & Guards brochure.

To convert BTU to Watts, multiply by 0.293. To convert Watts to BTU divide by 0.293

Heat Output Tables Downloads

Optional Extras

  • Magnelis steel for wet rooms
  • Different gauges of material available
  • Strengthening struts
  • Door cables
  • Base plate to underside of cover for wall mounted version

Standard Delivery

  • Standard delivery comprises radiator guard of choice, corresponding vertical radiator and the option of a 90° Herz ½” valve kit (suitable for 15mm copper to copper connection on a two-pipe system)
  • Split delivery*- to reduce the risk of radiator casings becoming damaged or lost on site, Contour offer split deliveries as standard on all LST radiators.
    Radiators and valves are delivered first, then once the heating system is installed, tested and commissioned, casings are delivered. This virtually eliminates storage problems and the risk of on-site damage.

    *Additional carriage charges will apply for multiple phases

Colour Options Available

White

RAL 9003

Oyster White

RAL 1013

Tele Grey

RAL 7047

Mint Green

RAL 6029

Ultramarine

RAL 5002

Jet Black

RAL 9005

FAQ

What colour options are available for radiators and guards?

You have the full RAL colour chart to choose from, offering a colour spectrum of 1625 shades.

Contour covers come as standard in RAL 9003 with Biocote® protection.

Common colours for Contour LST radiators are:

  • White (RAL 9003)
  • Oyster White (RAL 1013)
  • Tele Grey (RAL 7047)
  • Jet Black (RAL 9005)
  • Traffic Red (RAL 3020)
  • Mint Green (RAL 6029)
  • Zinc Yellow (RAL 1018)
  • Ultra Marine Blue (RAL 5002)
  • Blue Lilac (RAL 4005)
  • Azure Blue (RAL 5009)
